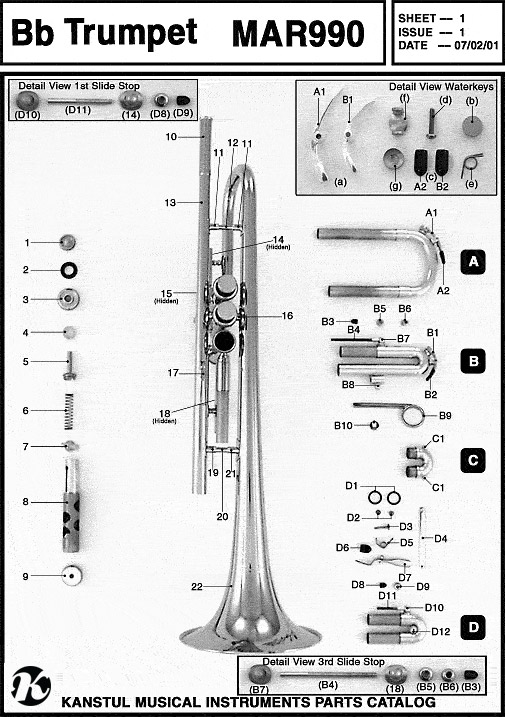

Parts: Trumpet 990
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Receiver |
| 11 | Brace Socket |
| 12 | Brace Rod |
| 13 | Mouthpipe |
| 14 | Post Stop Large Hole |
| 15 | Trigger Bridge |
| 16 | Balluster Brace |
| 17 | Finger Hook |
| 18 | Post Stop Large Hole |
| 19 | Brace Socket |
| Ref No. | Description |
|---|---|
| 20 | Brace Rode |
| 21 | Brace Socket |
| 22 | Bell |
| A | Tuning Slide Complete |
| A1 (a) | Waterkey** |
| A2 (c) |
Waterkey Bumper |
| B | 3rd Slide Complete |
| B1 (a) |
Waterkey** |
| B2 (c) | Waterkey Bumper |
| B3 | Post Stop Bumper |
| B4 | Threaded Post Stop Knob |
| B5 |
Small Post Stop Nut |
| B6 | Large Post Stop Nut |
| B7 | Post Stop Small Hole |
| B8 | Lyre Holder |
| B9 | Push Rod |
| B10 | Lyre Holder Screw |
| C | 2nd Slide Complete |
| C1 | Slide Knob |
| Ref No. | Description |
|---|---|
| D | 1st Slide Complete |
| D1 | Slide Bumpers |
| D2 | Trigger Pivot Screws |
| D3 | Trigger Hinge Screw |
| D4 | Trigger Arm |
| D5 | Trigger Spring |
| D6 | Trigger Bumper |
| D7 | Trigger Lever |
| D8 | Post Stop Bumper |
| D9 | Post Stop Nut |
| D10 | Post Stop Small Hole |
| D11 | Threaded Post Stop Knob |
| D12 | Trigger Pivot |
| ** | Waterkey Assembly |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
