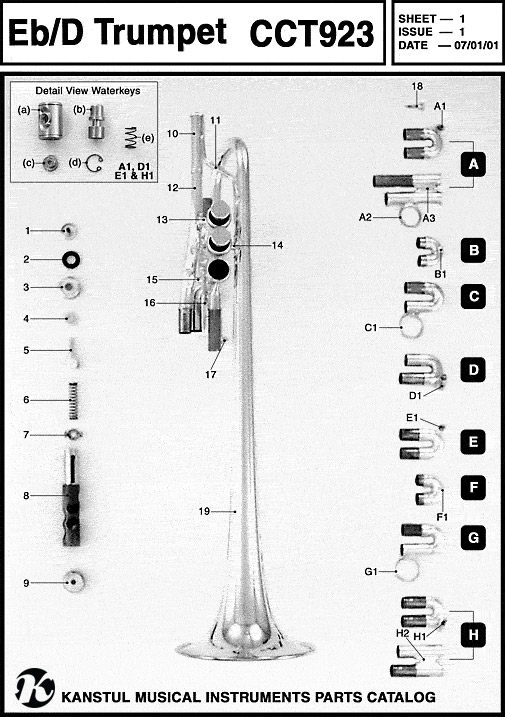

Parts: Trumpet 923
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Receiver |
| 11 | Small Z Brace |
| 12 |
Mouthpipe |
| 13 |
Brace |
| 14 |
Brace |
| 15 |
Brace |
| 16 |
Finger Hook |
| 17 | Threaded Stop Socket |
| Ref No. | Description |
|---|---|
| 18 | Stop Screw |
| 19 | Bell |
| A | 3rd Slide Complete (Key Eb) |
| A | 3rd Slide End (Key Eb) |
| A | 3rd Slide Main (Key Eb) |
| A1 | Waterkey Assembly ** |
| A2 | Finger Ring |
| A3 | 3rd Slide Brace |
| B | 2nd Slide Complete (Key Eb) |
| B1 | Slide Knob |
| C | 1st Slide Complete (Key Eb) |
| C1 | Thumb Ring |
| D | Tuning Slide Complete (Key Eb) |
| D1 | Waterkey Assembly ** |
| E | 3rd Slide Complete (Key D) |
| E1 | Waterkey Assembly ** |
| Ref No. | Description |
|---|---|
| F | 2nd Slide Complete (Key D) |
| F1 | Slide Knob |
| G | 1st Slide Complete (Key D) |
| G1 | Thumb Ring |
| H | Tuning Slide Complete (Key D) |
| H | Tuning Slide End (Key D) |
| H |
Tuning Slide Main (Key D) |
| H1 | Waterkey Assembly ** |
| H2 | Tuning Slide Brace |
| ** | Waterkey Assembly ** |
| W (a) | Body |
| W (b) | Piston |
| W (c) | Retainer |
| W (d) | Clip |
| W (e) | Spring |
