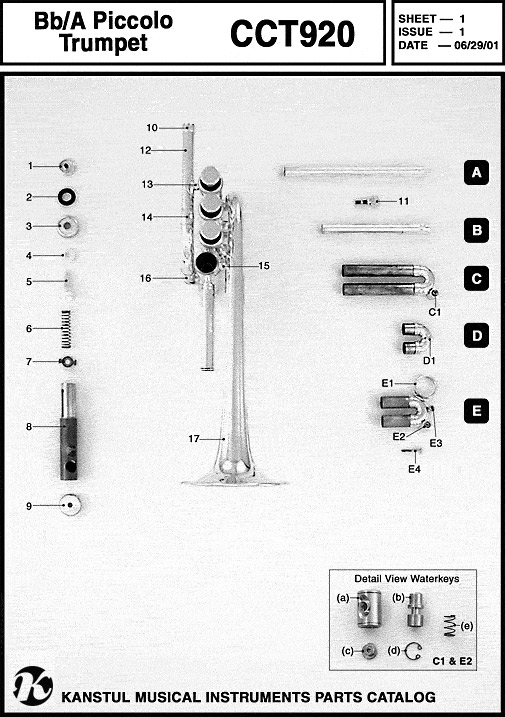

Parts: Trumpet 920
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 8 |
4th Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Threaded Lock Ring |
| Ref No. | Description |
|---|---|
| 11 | Wing Screw |
| 12 | Mouthpipe Outside |
| 13 | Brace |
| 14 | Ferrule |
| 15 | Brace |
| 16 | Ferrule |
| 17 | Bell |
| A | Cornet Mouthpipe (Key A) |
| B | Cornet Mouthpipe (Key Bb) |
| C | 4th Slide Complete |
| C1 | Waterkey Assembly** |
| D | 1st Slide Complete |
| Ref No. | Description |
|---|---|
| D1 | Slide Knob |
| E |
3rd Slide Complete |
| E1 | Finger Ring |
| E2 | Waterkey Assembly ** |
| E3 | Threaded Stop Socket |
| E4 | Stop Screw |
| ** | Waterkey Assembly ** |
| W (a) | Body |
| W (b) | Piston |
| W (c) | Retainer |
| W (d) | Clip |
| W (e) | Spring |
