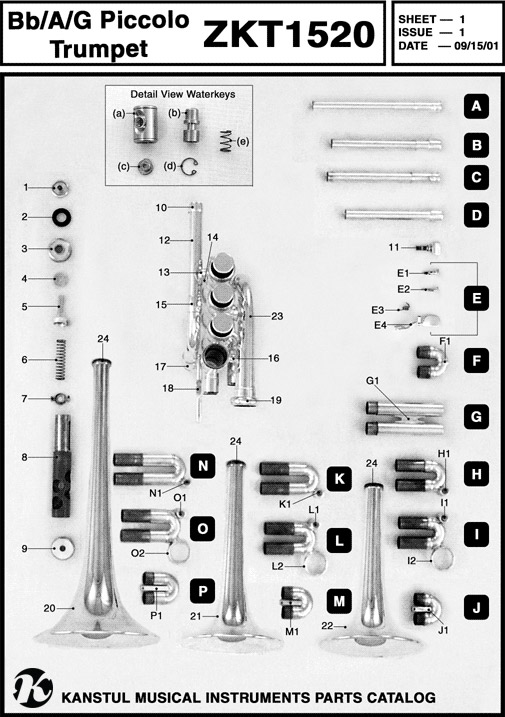

Parts: Trumpet 1520
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 8 |
4th Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Threaded Lock Ring |
| 11 | Wing Screw for Locking Ring |
| 12 |
Mouthpipe Outside |
| 13 |
Brace |
| 14 |
Trigger Bridge |
| 15 |
Ferrule |
| 16 |
Brace |
| 17 |
Ferrule |
| 18 |
Finger Hook Complete |
| 19 |
Bell Ring Female |
| 20 | Bell (Key G) |
| 21 | Bell (Key A) |
| 22 | Bell (Key Bb) |
| 23 | Bell Tail |
| 24 | Bell Ring Male |
| Ref No. | Description |
|---|---|
| A | Cornet Mouthpipe (Key A & G) |
| B | Trumpet Mouthpipe (Key A & G) |
| C | Cornet Mouthpipe (Key Bb) |
| D |
Trumpet Mouthpipe (Key Bb) |
| E1 |
Trigger Pivot Screw |
| E2 | Trigger Hinge Screw |
| E3 |
Trigger Spring (1st Slide) |
| E4 |
Trigger Lever (1st Slide) |
| F |
Trill Crook (4th slide alternate) |
| F1 |
Slide Knob |
| G |
4th Valve Main Slide |
| G1 |
4th Valve Main Slide Brace |
| H |
4th Valve End Slide (Key Bb) |
| H1 |
Waterkey Assembly ** |
| I |
3rd Valve Slide (Key Bb) |
| I1 |
Waterkey Assembly ** |
| I2 |
Finger Ring |
| J | 1st Valve Slide (Key Bb) |
| J1 | Trigger Pivot (1st Slide) |
| K | 4th Valve End Slide (Key A) |
| Ref No. | Description |
|---|---|
| K1 |
Waterkey Assembly ** |
| L | 3rd Valve Slide (Key A) |
| L1 | Waterkey Assembly ** |
| L2 | Finger Ring |
| M | 1st Valve Slide (Key A) |
| M1 | Trigger Pivot (1st Slide) |
| N | 4th Valve End Slide (Key G) |
| N1 | Waterkey Assembly ** |
| O | 3rd Valve Slide (Key G) |
| O1 | Waterkey Assembly ** |
| O2 | Finger Ring |
| P | 1st Valve Slide (Key G) |
| P1 | Trigger Pivot (1st Slide) |
| ** | Waterkey Assembly |
| W (a) | Body |
| W (b) | Piston |
| W (c) | Retainer |
| W (d) | Clip |
| W (e) | Spring |
