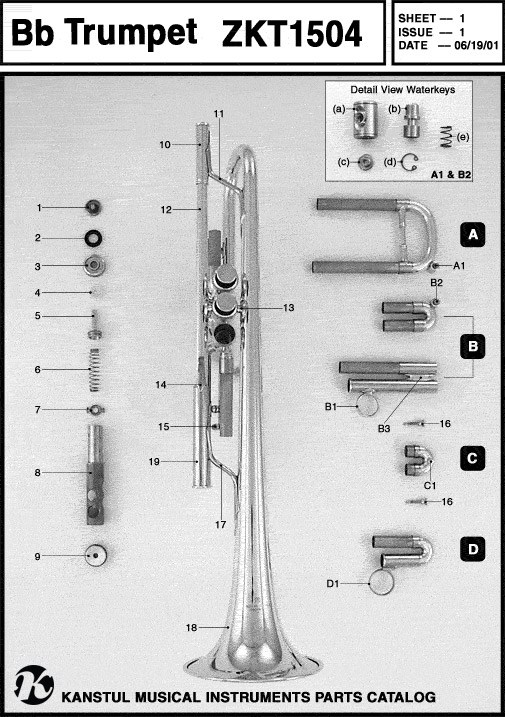

Parts: Trumpet 1504
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Receiver |
| 11 | Small Z Brace |
| 12 | Mouthpipe |
| 13 | Balluster Brace |
| Ref No. | Description |
|---|---|
| 14 | Finger Hook |
| 15 | Threaded Stop Socket |
| 16 | 3rd Slide Stop Screw |
| 17 | Large Z Brace |
| 18 | Bell |
| 19 | Outside Slide |
| A | Tuning Slide Complete |
| A1 | Waterkey** |
| B | 3rd Slide Complete |
| B | 3rd Slide Main |
| B | 3rd Slide End |
| B1 | Finger Ring |
| Ref No. | Description |
|---|---|
| B2 | Waterkey Assembly ** |
| B3 | Brace 3rd Slide |
| C | 2nd Slide Complete |
| C1 | Slide Knob |
| D | 1st Slide Complete |
| D1 | Thumb Ring |
| **(A1 & B2) | Waterkey Assembly** |
| W (a) | Body |
| W (b) | Piston |
| W (c) | Retainer |
| W (d) | Clip |
| W (e) | Spring |
