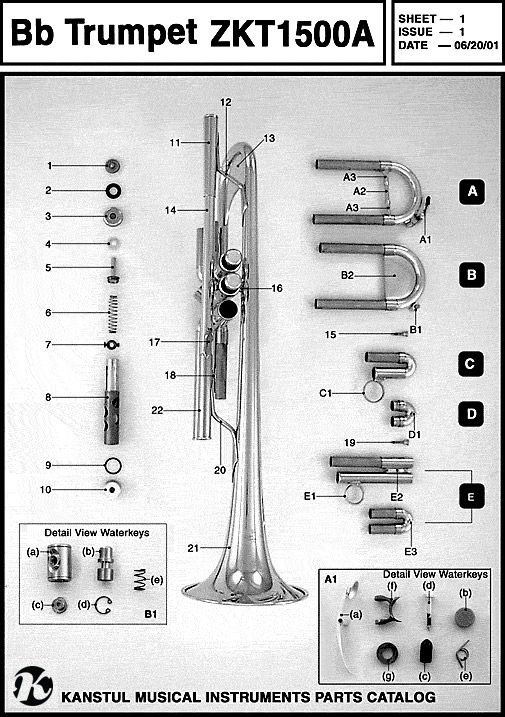

Parts: Trumpet 1500A
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
O Ring |
| 10 |
Bottom Cap |
| 11 | Receiver |
| 12 | Small Z Brace |
| 13 | Bell Plate |
| 14 | Mouthpipe |
| 15 | 1st Slide Stop Screw |
| 16 | Balluster Brace |
| 17 | Finger Hook |
| Ref No. | Description |
|---|---|
| 18 | Threaded Stop Socket |
| 19 | 3rd Slide Stop Screw |
| 20 | Large Z Brace |
| 21 | Bell |
| 22 | Outside Slide |
| A | Tuning Slide Complete (Square) |
| A1 |
Waterkey** |
| A2 |
Brace Rod |
| A3 |
Brace Socket |
| B | Tuning Slide Complete (Round) |
| B1 |
Waterkey*** |
| B2 |
Tuning Slide Plate |
| C | 1st Slide Complete |
| C1 | Thumb Ring |
| D | 2nd Slide Complete |
| D1 | Slide Knob |
| E | 3rd Slide Complete |
| E | 3rd Slide Main |
| E | 3rd Slide End |
| Ref No. | Description |
|---|---|
| E1 | Finger Ring |
| E2 | 3rd Slide Brace |
| E3 | Slide Knob |
| (A1)** | Waterkey Assembly** |
| W(a) | Waterkey |
| W(b) | Cork |
| W(c) | Bumper |
| W(d) | Screw |
| W(e) | Spring |
| W(f) | Bridge |
| W(g) | Nipple |
| (B1)*** | Waterkey Assembly*** |
| W(a) | Body |
| W(b) | Piston |
| W(c) | Retainer |
| W(d) | Clip |
| W(e) | Spring |
