Parts: Trumpet 1000
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.

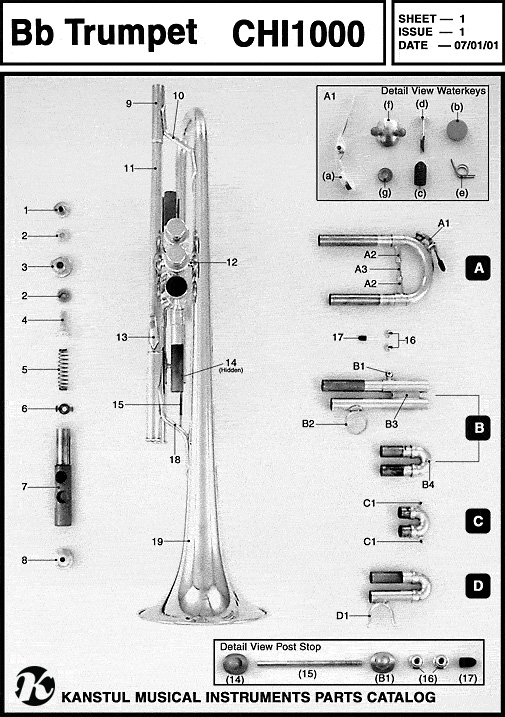

| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 |
Valve Spring |
| 6 |
Guide |
| 7 | 1st Valve Piston |
| 7 | 2nd Valve Piston |
| 7 | 3rd Valve Piston |
| 8 | Bottom Cap |
| 9 |
Receiver |
| 10 |
Small Z Brace |
| 11 | Mouthpipe |
| 12 | Balluster Brace |
| 13 | Finger Hook |
| 14 | Post Stop Small Hole |
| Ref No. | Description |
|---|---|
| 15 | Stop Rod |
| 16 | Stop Nuts |
| 17 | Stop Bumper |
| 18 | Large Z Brace |
| 19 | Bell |
| A | Tuning Slide Complete |
| A1 |
Waterkey** |
| A2 |
Brace Socket |
| A3 |
Brace Rod |
| B | 3rd Slide Complete |
| B | 3rd Slide Main |
| B | 3rd Slide End |
| B1 |
Post Stop Large Hole |
| B2 |
Finger Ring |
| Ref No. | Description |
|---|---|
| B3 | 3rd Slide Brace |
| B4 | Slide Knob |
| C | 2nd Slide Complete |
| C1 |
Slide Knobs |
| D | 1st Slide Complete |
| D1 | Thumb Throw |
| ** | Waterkey Assembly** |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
