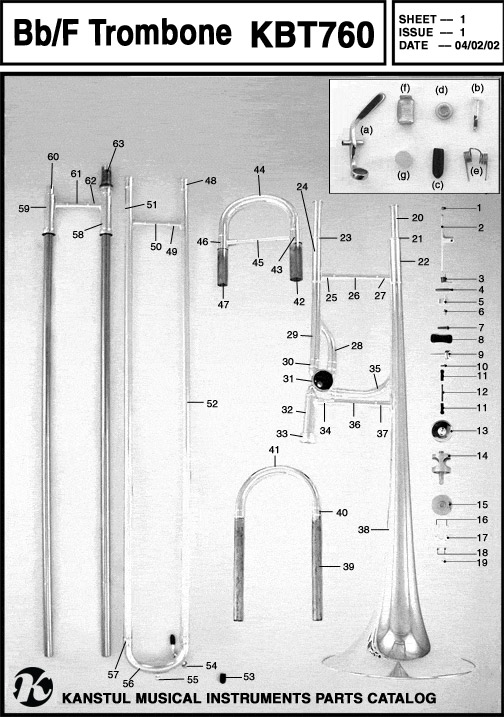

Parts: Trombone 760
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Trigger Screw |
| 2 | Trigger Lever |
| 3 | Trigger Spring |
| 4 |
Bridge Screw |
| 5 |
Eccentric Nut |
| 6 |
Screw |
| 7 |
Screw |
| 8 |
Plastic Roller |
| 9 | Trigger Arm Clamp |
| 10 | Screw |
| 11 | Plastic Ball Joint |
| 12 |
Threaded Rod |
| 13 | Trombone Rotor Cap |
| 14 | Trombone Rotor Piston |
| 15 | Trombone Rotor Retainer |
| 16 | Bumpers |
| 17 | Cork Plate |
| 18 | Screws |
| 19 | Screw |
| 20 | Outside Slide F Attachment |
| 21 | Beadring Large |
| 22 | Outside Slide Large |
| 23 | Beadring Small |
| 24 | Outside Slide Small |
| Ref No. | Description |
|---|---|
| 25 | Socket Brace Small |
| 26 | Tube |
| 27 | Socket Brace Large |
| 28 | Crook |
| 29 | Gooseneck |
| 30 | Ferrule |
| 31 | Rotor Housing |
| 32 | Bell Receiver |
| 33 | Lock Ring |
| 34 | Socket Brace |
| 35 | Crook |
| 36 | Tube |
| 37 | Socket Brace |
| 38 | Bell |
| 39 | Inside Slide |
| 40 | Ferrule |
| 41 | F Crook Slide |
| 42 | Large Diameter Inside Slide |
| 43 | Socket Ferrule Large |
| 44 | Tuning Slide Crook |
| 45 | Tube |
| 46 | Small Socket Ferrule |
| 47 | Small Diameter Inner Slide |
| 48 | Sleeve |
| Ref No. | Description |
|---|---|
| 49 | Brace |
| 50 | Tube |
| 51 | Catch |
| 52 | Outside Slide |
| 53 | Slide Bumper |
| 54 | Waterkey Assembly ** |
| 55 | Knob |
| 56 | Crook |
| 57 | Ferrule |
| 58 | Upperworks |
| 59 | Upperworks Locking Slide |
| 60 | Mouthpipe |
| 61 | Tube |
| 62 | Brace |
| 63 | Tapper |
| ** | Waterkey Assembly |
| W(a) | Waterkey |
| W(b) | Screw |
| W(c) | Bumper |
| W(d) | Nipple |
| W(e) | Spring |
| W(f) | Bridge |
| W(g) | Cork |
