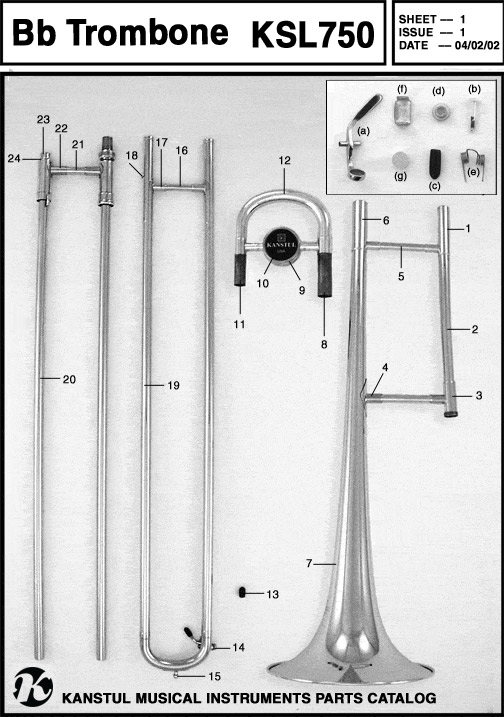

Parts: Trombone 750
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Small Diameter Outside Slide |
| 2 | Gooseneck |
| 3 | Bell Receiver |
| 4 |
Brace |
| 5 |
Tube |
| 6 |
Large Diameter Outside Slide |
| 7 |
Bell |
| 8 |
Large Diameter Inner Slide |
| 9 |
Weight |
| 10 |
Label |
| 11 | Small Diameter Inner Slide |
| Ref No. | Description |
|---|---|
| 12 | Tuning Slide Crook |
| 13 | Slide Bumper |
| 14 | Waterkey Assembly ** |
| 15 | Knob |
| 16 | Tube |
| 17 | Brace |
| 18 | Catch |
| 19 | Outer Slide |
| 20 |
Inner Slide |
| 21 |
Tube |
| 22 | Brace |
| Ref No. | Description |
|---|---|
| 23 | Mouthpipe |
| 24 | Cork Bumper |
| ** | Waterkey Assembly |
| W (a) |
Waterkey |
| W (b) | Screw |
| W (c) | Bumper |
| W (d) | Nipple |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Cork |
