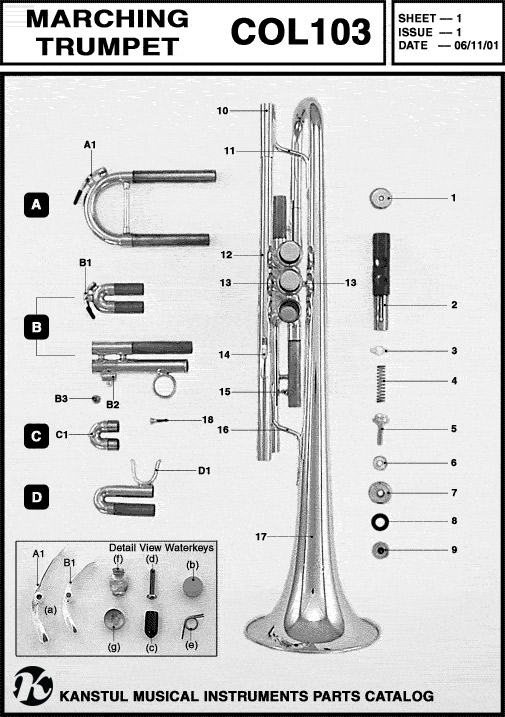

Parts: Marching Trumpet 103
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Bottom Cap |
| 2 | 1st Valve Piston |
| 2 | 2nd Valve Piston |
| 2 | 3rd Valve Piston |
| 3 | Guide |
| 4 | Valve Spring |
| 5 | Stem |
| 6 | Felt |
| 7 | Top Cap |
| 8 | Rubber Bumper |
| 9 |
Finger Tip |
| 10 |
Receiver |
| 11 | Small Z Brace |
| Ref No. | Description |
|---|---|
| 12 | Mouthpipe |
| 13 | Balluster Brace |
| 14 | Finger Hook |
| 15 | Threaded Stop Socket |
| 16 | Large Z Brace |
| 17 | Bell |
| 18 | Stop Screw |
| A | Tuning Slide Complete |
| A1 |
Waterkey (a)** |
| B |
3rd Slide Complete |
| B | 3rd Slide End |
| B | 3rd Slide Main |
| Ref No. | Description |
|---|---|
| B1 | Waterkey ** |
| B2 | Lyre Holder |
| B3 | Lyre Holder Screw |
| C |
2nd Slide Complete |
| C1 | Slide Knob |
| D | 1st Slide Complete |
| D1 | Saddle |
| ** | Waterkey Assembly** |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
