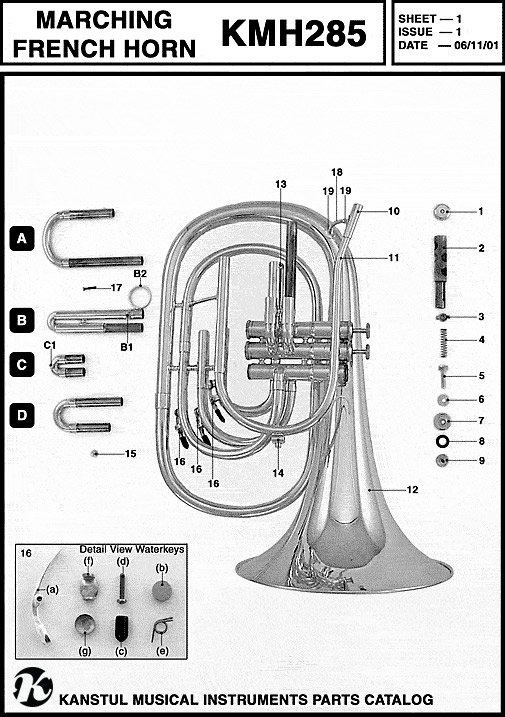

Parts: Marching French Horn 285
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Bottom Cap |
| 2 | 1st Valve Piston |
| 2 | 2nd Valve Piston |
| 2 | 3rd Valve Piston |
| 3 | Guide |
| 4 | Valve Spring |
| 5 | Stem |
| 6 | Felt |
| 7 | Top Cap |
| 8 |
Rubber Bumper |
| 9 |
Finger Tip |
| 10 |
Receiver |
| 11 | Mouthpipe |
| 12 | Bell |
| Ref No. | Description |
|---|---|
| 13 | Knob |
| 14 | Lyre Holder |
| 15 | Lyre Holder Screw |
| 16 | Waterkey Assembly ** |
| 17 | Stop Screw |
| 18 | Bent Rod Brace |
| 19 |
Brace Socket |
| A |
Tuning Slide Complete |
| B | 1st Slide Complete |
| B1 |
Threaded Stop Socket |
| B2 | Thumb Ring |
| C | 2nd Slide Complete |
| Ref No. | Description |
|---|---|
| C1 | Slide Knob |
| D |
3rd Slide Complete |
| ** | Waterkey Assembly (16) |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
