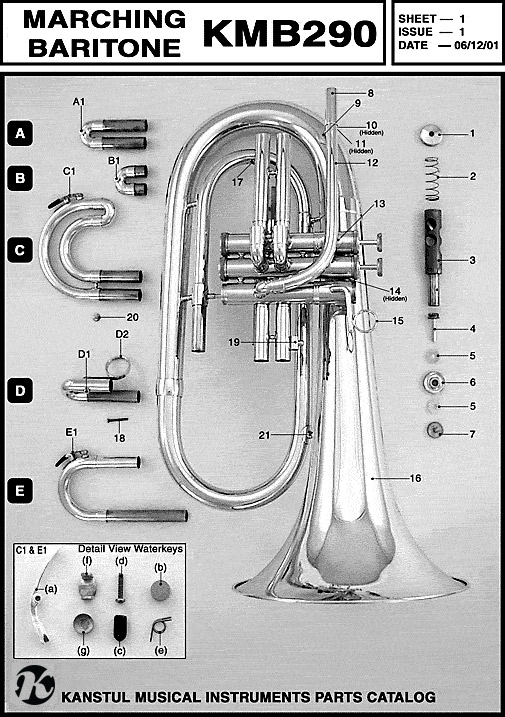

Parts: Marching Baritone 290
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Bottom Cap |
| 2 | Valve Spring |
| 3 | 1st Valve Piston |
| 3 | 2nd Valve Piston |
| 3 | 3rd Valve Piston |
| 4 | Stem |
| 5 | Felt |
| 6 | Top Cap |
| 7 | Finger Tip |
| 8 | Receiver |
| 9 |
Brace Large Socket |
| 10 |
Brace Small Socket |
| 11 |
Brace Rod |
| 12 |
Mouthpipe |
| 13 | Balluster Brace |
| 14 | Balluster Brace |
| Ref No. | Description |
|---|---|
| 15 | Finger Ring |
| 16 | Bell |
| 17 | Threaded Stop Socket |
| 18 | Stop Screw |
| 19 | Lyre Holder |
| 20 | Lyre Holder Screw |
| 21 |
Brace |
| A |
1st Slide Complete |
| A1 | Slide Knob |
| B |
2nd Slide Complete |
| B1 | Slide Knob |
| C | 3rd Slide Complete |
| C1 | Waterkey Assembly ** |
| D | Tune Any Note Slide |
| D1 | Slide Knob |
| Ref No. | Description |
|---|---|
| D2 |
Thumb Ring |
| E | Tuning Slide Complete |
| E1 | Waterkey Assembly** |
| ** | Watery Assembly (C1 & E1) |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
