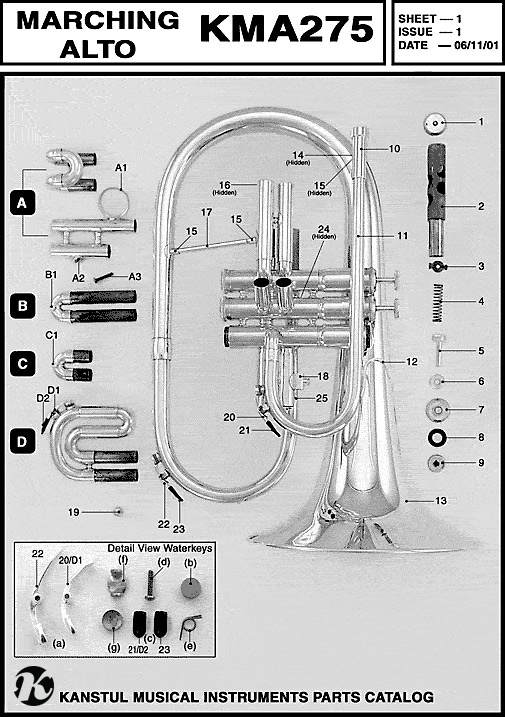

Parts: Marching Alto 275
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Bottom Cap |
| 2 | 1st Valve Piston |
| 2 | 2nd Valve Piston |
| 2 | 3rd Valve Piston |
| 3 | Guide |
| 4 | Valve Spring |
| 5 | Stem |
| 6 | Felt |
| 7 | Top Cap |
| 8 |
Rubber Bumper |
| 9 |
Finger Tip |
| 10 |
Receiver |
| 11 | Mouthpipe Brace |
| 12 | Finger Hook |
| 13 | Bell |
| 14 | Brace Rod |
| 15 | Brace Socket |
| Ref No. | Description |
|---|---|
| 16 | Knob Stop |
| 17 | Brace Rod |
| 18 | Lyre Holder |
| 19 | Lyre Holder Screw |
| 20 | Waterkey (a) ** |
| 21 | Waterkey Bumper (c) |
| 22 |
Waterkey (a) ** |
| 23 |
Waterkey Bumper (c) |
| 24 | Brace |
| 25 |
Brace |
| A |
Tuning Slide Complete |
| A |
Tuning Slide-Tune Any Note |
| A |
Tuning Slide |
| A1 | Ring |
| A2 | Threaded Stop Socket |
| Ref No. | Description |
|---|---|
| A3 | Stop Screw |
| B |
1st Slide Complete |
| B1 | Slide Knob |
| C | 2nd Slide Complete |
| C1 | Slide Knob |
| D | 3rd Slide Complete |
| D1 | Waterkey (a) ** |
| D2 | Waterkey Bumper (c) |
| ** | Waterkey Assembly** |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
