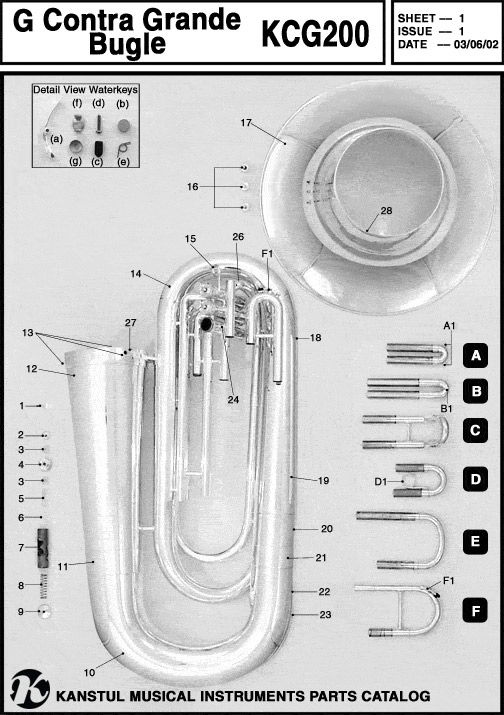

Parts: G Contra Grande Bugle 200
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Screw |
| 2 | Finger Tip |
| 3 | Felt |
| 4 |
Top Cap |
| 5 |
Stem |
| 6 |
Guide |
| 7 | 1st Valve Piston |
| 7 | 2nd Valve Piston |
| 7 | 3rd Valve Piston |
| 8 | Valve Spring |
| 9 |
Bottom Cap |
| 10 |
#1 Branch |
| 11 | Bell Ferrule |
| 12 | Bell Tail |
| 13 | Bell Socket Threaded |
| 14 | #2 Branch |
| 15 | Finger Ring |
| Ref No. | Description |
|---|---|
| 16 | Bell Lock Screws |
| 17 | Bell |
| 18 | Guard Wire |
| 19 | Guard Wire |
| 20 | Ferrule |
| 21 | Ferrule |
| 22 | Guard Cap |
| 23 |
Guard Wire |
| 24 |
Brace |
| 25 | Bell Brace |
| 26 |
Split Nut Assembly |
| 27 |
Female Ring |
| 28 |
Male Ring |
| A |
2nd Valve Slide Complete |
| A1 |
Slide Knob |
| B | 1st Valve Slide Complete |
| B1 | Slide Knob |
| Ref No. | Description |
|---|---|
| C | 3rd Valve Slide Complete |
| D |
Tuning Slide-Slide Adjust Complete |
| D1 | Finger Ring |
| E | Tuning Slide Complete |
| F | MP Slide |
| F1 | Waterkey Assembly |
| ** | Waterkey Assembly |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
