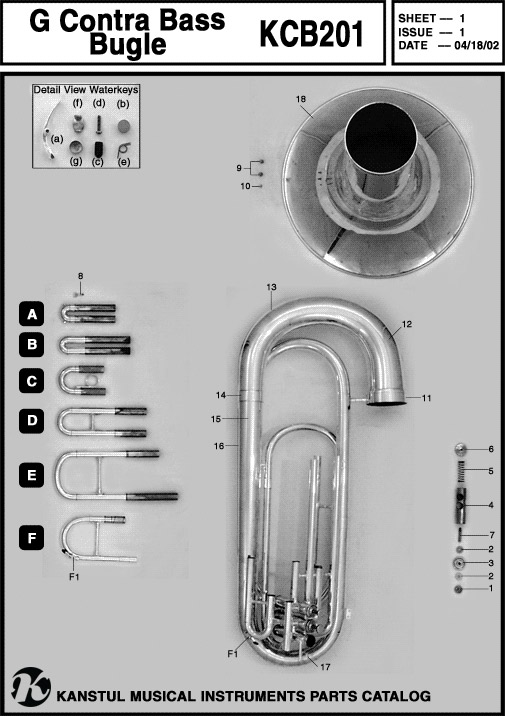

Parts: G Contra Bass Bugle 201
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Felt |
| 3 | Top Cap |
| 4 | 1st Valve Piston |
| 4 | 2nd Valve Piston |
| 4 | 3rd Valve Piston |
| 5 | Valve Spring |
| 6 | Bottom Cap |
| 7 | Stem |
| 8 | Wing Screw |
| 9 |
Screws |
| 10 | Screw |
| Ref No. | Description |
|---|---|
| 11 | Ferrule |
| 12 | Branch 1 |
| 13 | Guard Wire |
| 14 | Ferrule |
| 15 | Branch 2 |
| 16 | Guard Wire |
| 17 | Finger Ring |
| 18 | Bell |
| A |
2nd Slide Complete |
| B |
1st Slide Complete |
| C | Tune Any Note Slide |
| Ref No. | Description |
|---|---|
| D | 3rd Slide Complete |
| E | Tuning Slide Complete |
| F | Mouthpipe |
| F1 |
Water Key Assembly |
| ** | Waterkey Assembly |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
