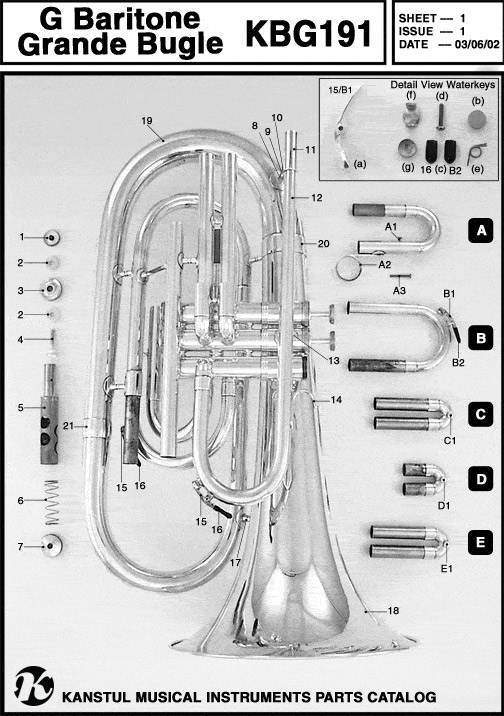

Parts: G Baritone Grande Bugle 191
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 | 1st Valve Piston |
| 5 | 2nd Valve Piston |
| 5 | 3rd Valve Piston |
| 6 | Valve Spring |
| 7 | Bottom Cap |
| 8 | Socket Brace |
| 9 |
Rod |
| 10 |
Socket Brace |
| 11 | Receiver |
| 12 | Mouthpipe |
| 13 | Ballister Brace |
| 14 | Finger Hook |
| Ref No. | Description |
|---|---|
| 15 | Waterkey |
| 16 | Bumper (c) |
| 17 | Bell Brace |
| 18 | Bell |
| 19 | Bow Bottom |
| 20 | Bell Ferrule |
| 21 | 2nd Branch Ferrule |
| A |
Tune Any Note Slide Complete |
| A1 | Threaded Stop Socket |
| A2 |
Ring |
| A3 |
Stop Screw |
| B |
Tuning Slide Complete |
| B1 |
Waterkey (a) ** |
| B2 |
Bumper (c) |
| Ref No. | Description |
|---|---|
| C | 1st Valve Slide Complete |
| C1 | Slide Knob |
| D | 2nd Valve Slide Complete |
| D1 |
Slide Knob |
| E | 3rd Valve Slide Complete |
| E1 | Slide Knob |
| ** | Waterkey Assembly** |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
