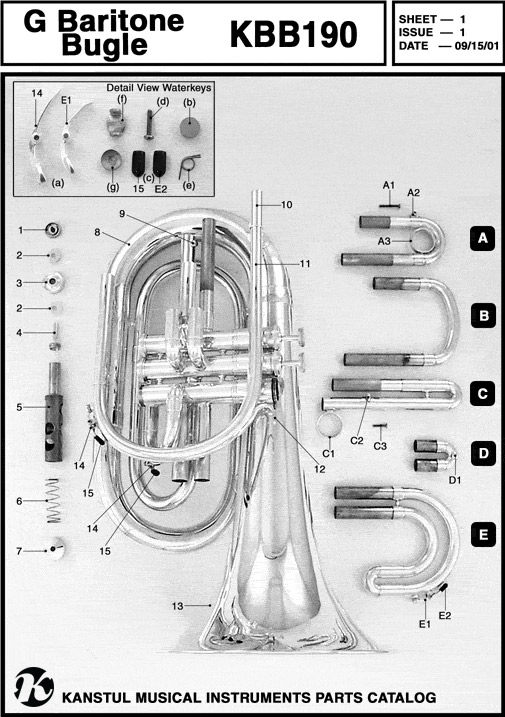

Parts: G Baritone Bugle 190
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 | 1st Valve Piston |
| 5 | 2nd Valve Piston |
| 5 | 3rd Valve Piston |
| 6 | Valve Spring |
| 7 | Bottom Cap |
| 8 | Branch 1 |
| 9 |
Slide Knob |
| 10 |
Receiver |
| 11 | Mouthpipe |
| 12 | Fingerhook |
| Ref No. | Description |
|---|---|
| 13 | Bell |
| 14 | Waterkey (a) ** |
| 15 | Bumper (c) |
| A | Tune Any Note Slide Complete |
| A1 | Stop Screw |
| A2 | Threaded Stop Socket |
| A3 | Ring |
| B |
Tuning Slide Complete |
| C |
1st Valve Slide Complete |
| C1 | Thumb Ring |
| C2 |
Threaded Stop Socket |
| C3 | Stop Screw |
| Ref No. | Description |
|---|---|
| D | 2nd Valve Slide Complete |
| D1 | Slide Knob |
| E |
3rd Valve Slide Complete |
| E1 | Waterkey (a) ** |
| E2 | Bumper (c) |
| ** | Waterkey Assembly** |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
