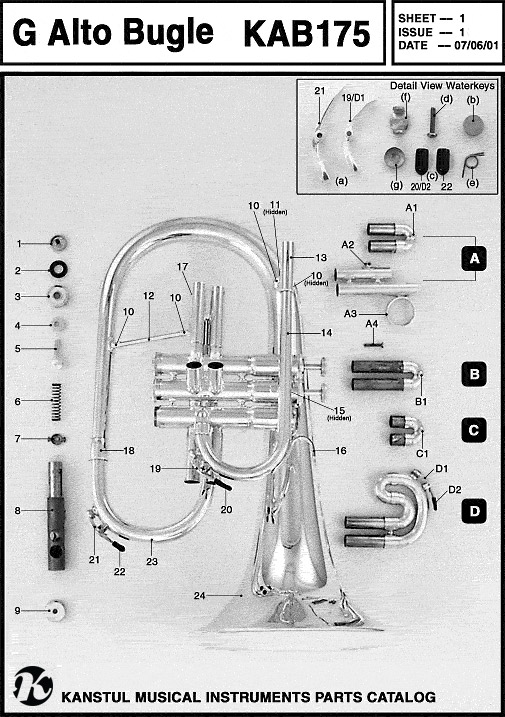

Parts: G Alto Bugle 175
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Brace Socket |
| 11 | Brace Rod |
| 12 | Brace Rod |
| 13 | Receiver |
| 14 | Mouthpipe |
| 15 | Balluster Brace |
| Ref No. | Description |
|---|---|
| 16 | Finger Hook |
| 17 | Stop Knob |
| 18 | Bell Ferrule |
| 19 | Waterkey (a) ** |
| 20 | Waterkey Bumper (c) |
| 21 | Waterkey (a) ** |
| 22 |
Waterkey Bumper (c) |
| 23 |
Branch |
| 24 | Bell |
| A |
Tuning Slide Complete |
| A |
Tuning Slide |
| A |
Tune Any Note Slide |
| A1 |
Slide Knob |
| A2 |
Threaded Stop Socket |
| Ref No. | Description |
|---|---|
| A3 | Ring |
| A4 | Stop Screw |
| B | 1st Slide Complete |
| B1 |
Slide Knob |
| C | 2nd Slide Complete |
| C1 | Slide Knob |
| D | 3rd Slide Complete |
| D1 | Waterkey (a) ** |
| D2 | Waterkey Bumper (c) |
| ** | Waterkey Assembly** |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
