Parts: Flugelhorn 1025
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.

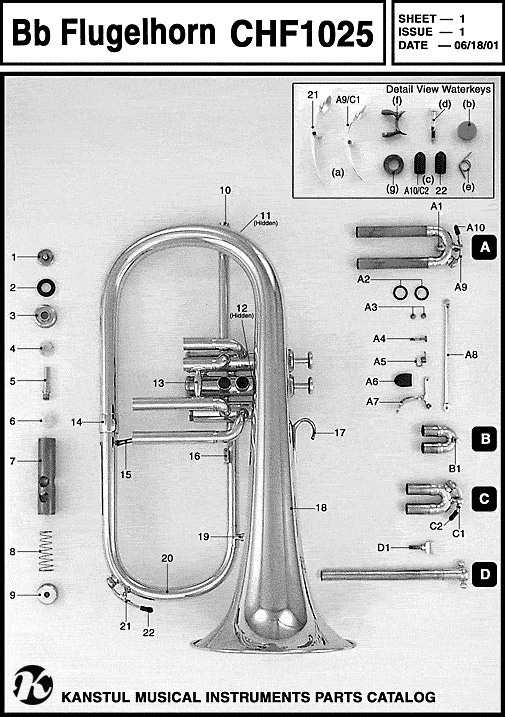

| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Guide |
| 7 | 1st Valve Piston |
| 7 | 2nd Valve Piston |
| 7 | 3rd Valve Piston |
| 8 | Valve Spring |
| 9 |
Bottom Cap |
| 10 |
Threaded Locking Ring |
| 11 | Brace Mouthpipe |
| 12 | Balluster Brace |
| 13 | 3rd Slide Brace |
| 14 | Bell Ferrule |
| 15 | 3rd Slide Cast Brace |
| Ref No. | Description |
|---|---|
| 16 | Trigger Bridge |
| 17 | Finger Hook |
| 18 | Bell |
| 19 | Bell Brace |
| 20 | Branch |
| 21 | Waterkey (a)** |
| 22 | Waterkey Bumper (c) |
| A |
3rd Slide Complete |
| A1 |
Trigger Pivot |
| A2 | Slide Bumpers |
| A3 |
Trigger Pivot Screws |
| A4 |
Trigger Hinge Screw |
| A5 |
Trigger Spring |
| A6 |
Trigger Bumper |
| A7 |
Trigger Lever |
| A8 | Trigger Arm |
| Ref No. | Description |
|---|---|
| A9 | Waterkey (a) ** |
| A10 | Waterkey Bumper (c) |
| B |
2nd Slide Complete |
| B1 | Slide Knob |
| C | 1st Slide Complete |
| C1 | Waterkey (a) ** |
| C2 | Waterkey Bumper (c) |
| D | Mouthpipe Complete |
| D1 | Wing Screw |
| ** | Waterkey Assembly |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
