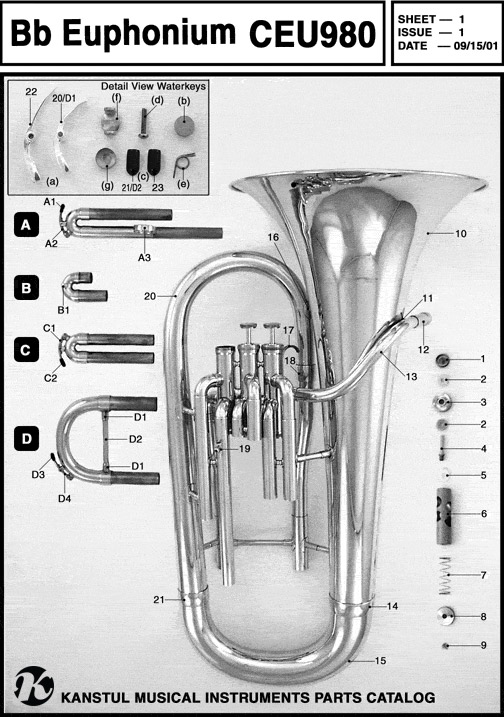

Parts: Euphonium 980
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 |
Guide |
| 6 | 1st Valve Piston |
| 6 | 2nd Valve Piston |
| 6 | 3rd Valve Piston |
| 7 | Valve Spring |
| 8 | Bottom Cap |
| 9 |
Lyre Holder Screw |
| 10 |
Bell |
| 11 | Mouthpipe Brace |
| 12 | Receiver |
| 13 | Mouthpipe |
| Ref No. | Description |
|---|---|
| 14 | Ferrule |
| 15 | Branch 1 |
| 16 | Brace |
| 17 | Thumb Hook |
| 18 | Ferrule |
| 19 | Lyre Holder |
| 20 | Branch 2 |
| 21 | Ferrule |
| A |
3rd Valve Slide Complete |
| A1 |
Waterkey Bumper (c) |
| A2 | Waterkey (a) ** |
| A3 |
Ring |
| B |
2nd Valve Slide Complete |
| B1 |
Slide Knob |
| C | 1st Valve Slide Complete |
| Ref No. | Description |
|---|---|
| C1 | Waterkey Bumper (c) |
| C2 | Waterkey (a) ** |
| D |
Tuning Slide Complete |
| D1 | Brace Socket |
| D2 | Brace Rod |
| D3 | Waterkey Bumper (c) |
| D4 | Waterkey (a) ** |
| ** | Waterkey Assembly |
| W (b) | Cork |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
