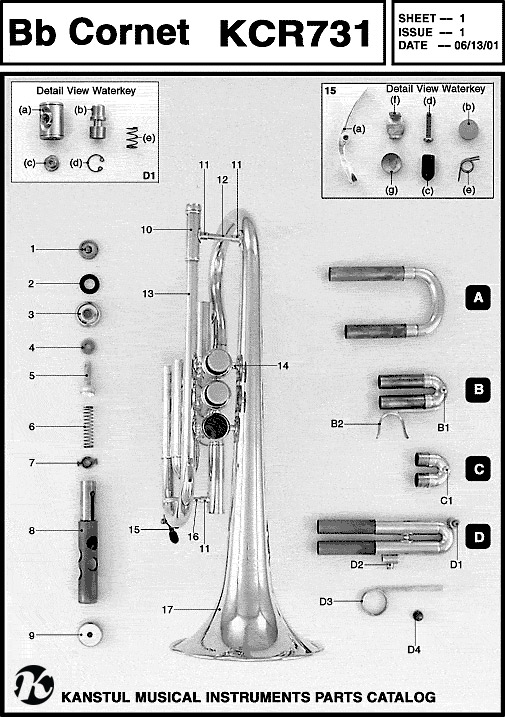

Parts: Cornet 731
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Receiver |
| 11 | Brace Socket |
| 12 | Brace Rod |
| 13 | Mouthpipe |
| 14 | Balluster Brace |
| 15 | Waterkey Assembly ** |
| Ref No. | Description |
|---|---|
| 16 | Mouthpipe Brace |
| 17 | Bell |
| A |
Tuning Slide Complete |
| B | 1st Slide Complete |
| B1 | Slide Knob |
| B2 | Thumb Throw |
| C |
2nd Slide Complete |
| C1 |
Slide Knob |
| D | 3rd Slide Complete |
| D1 |
Waterkey Assembly (Amado) *** |
| D2 |
Lyre Holder |
| D3 |
Push Rod |
| D4 |
Lyre Holder Screw |
| *** | Waterkey Assembly (D1) *** |
| W (a) | Body |
| Ref No. | Description |
|---|---|
| W (b) | Piston |
| W (c) | Retainer |
| W (d) | Clip |
| W (e) | Spring |
| ** | Waterkey Assembly (15) ** |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
