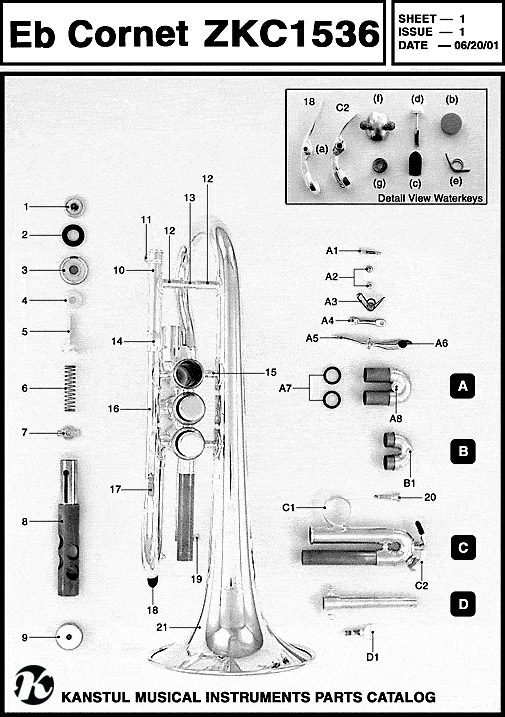

Parts: Cornet 1536
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.
| Ref No. | Description |
|---|---|
| 1 | Finger Tip |
| 2 | Rubber Bumper |
| 3 | Top Cap |
| 4 |
Felt |
| 5 |
Stem |
| 6 |
Valve Spring |
| 7 |
Guide |
| 8 |
1st Valve Piston |
| 8 |
2nd Valve Piston |
| 8 |
3rd Valve Piston |
| 9 |
Bottom Cap |
| 10 |
Receiver |
| 11 | Mouthpipe Clamp |
| 12 | Brace Socket |
| 13 | Brace Rod |
| 14 | Mouthpipe |
| 15 | Balluster Brace |
| 16 | Mouthpipe Tube |
| Ref No. | Description |
|---|---|
| 17 | Finger Hook |
| 18 | Waterkey Assembly ** |
| 19 | Threaded Stop Socket |
| 20 | Stop Screw |
| 21 | Bell |
| A |
1st Slide Complete |
| A1 |
Trigger Hinge Screw |
| A2 | Trigger Pivot Screws |
| A3 |
Trigger Spring |
| A4 |
Trigger Arm |
| A5 |
Trigger Lever |
| A6 |
Trigger Bumper |
| A7 | Slide Bumpers |
| A8 | Trigger Pivot |
| B | 2nd Slide Complete |
| Ref No. | Description |
|---|---|
| B1 |
Slide Knob |
| C | 3rd Slide Complete |
| C1 | Finger Ring |
| C2 | Waterkey Assembly** |
| D | Mouthpipe Assembly Complete |
| D2 | Wing Screw |
| ** | Waterkey Assembly |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
