Parts: Baritone 390
Please note: Information on this website is for reference purposes only. Our doors are closed permanently and we will no longer be responding to phone calls or emails.

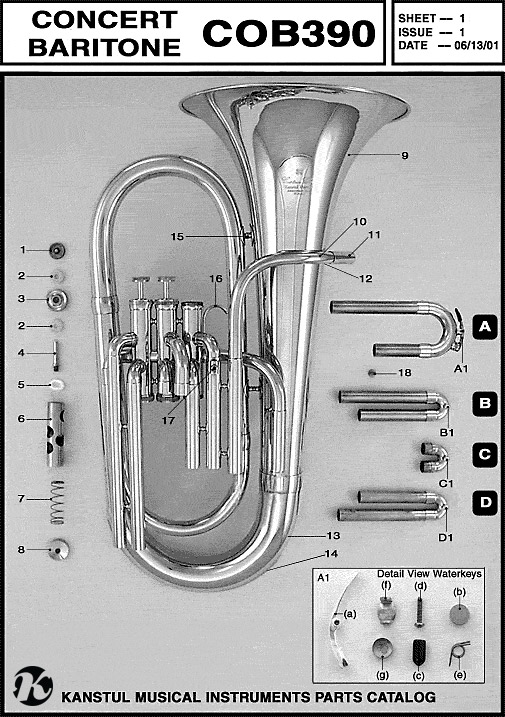

| Ref No. | Description |
|---|---|
| 1 | FingerTip |
| 2 | Felt |
| 3 | Top Cap |
| 4 |
Stem |
| 5 |
Guide |
| 6 | 1st Valve Piston |
| 6 | 2nd Valve Piston |
| 6 | 3rd Valve Piston |
| 7 | Valve Spring |
| 8 | Bottom Cap |
| 9 |
Bell |
| 10 |
Mouthpipe |
| 11 |
Receiver |
| Ref No. | Description |
|---|---|
| 12 | Mouthpipe Brace |
| 13 | Branch |
| 14 | Guard |
| 15 | Bell Brace |
| 16 | Thumb Hook |
| 17 | Lyre Holder |
| 18 | Lyre Holder Screw |
| A | Tuning Slide Complete |
| A1 |
Waterkey Assembly ** |
| B |
1st Slide Complete |
| B1 | Slide Knob |
| C | 2nd Slide Complete |
| Ref No. | Description |
|---|---|
| C1 | Slide Knob |
| D | 3rd Slide Complete |
| D1 | Slide Knob |
| ** | Waterkey Assembly (A1) |
| W (a) | Waterkey |
| W (b) | Cork |
| W (c) | Bumper |
| W (d) | Screw |
| W (e) | Spring |
| W (f) | Bridge |
| W (g) | Nipple |
