One Piece Flügelhorn Mouthpieces

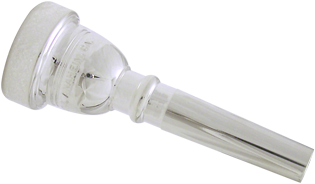

One Piece Flugel Mouthpiece

CG Personal Flügel A medium sized cup and rim for a great all around flugel piece. Standard taper.

Kanstul 10FL Compact sound and more resistance than our other flugel horn pieces. Smallest diameter rim. Bach taper shank.

Kanstul 3FL Largest and deepest cup for a large full sound. Bach taper shank.

Kanstul 6FL Deep cup and comfortable rim size make this an easy piece to play. Bach taper shank.

Kanstul 7FL Compact sound and more resistance than our other flugel horn pieces. Bach taper shank.

Kanstul FB Flügel Similar rim and cup to the Kanstul FL but smaller throat and backbore compliment the Bach size shank.

Kanstul FL Flügel Full, rich flügel sound with an easy to play rim and cup. French shank.

M-4FL The same rim as the M-B4 trumpet mouthpiece, but with a deep flügel cup designed for a rich, dark sound. French shank.

M-4FLB The same rim as the M-B4 trumpet mouthpiece, but with a deep flügel cup designed for a rich, dark sound. Bach shank.

M-4FLY The same rim as the M-B4 trumpet mouthpiece, but with a deep flügel cup designed for a rich, dark sound. Yamaha shank.

Model	mm	Decimal	Fraction	Throat Size	Cup Depth	Part #	Price
CG Personal Flügel	16.60	0.651	21/32	#20 – .161″	Medium	40206	$65.00
Kanstul 10FL	16.00	0.624	5/8	#20 – .161″	Med. Deep	40305	$65.00
Kanstul 3FL	16.50	0.645	41/64	#20 – .161″	Very Deep	40302	$65.00
Kanstul 6FL	17.00	0.664	21.5/32	#19 – .166″	Deep	40310	$65.00
Kanstul 7FL	16.25	0.640	41/64	#20 – .161″	Med. Deep	40304	$65.00
Kanstul FB Flügel	16.00	0.622	5/8	#20 – .161″	Medium	40307	$65.00
Kanstul FL Flügel	16.50	0.642	41/64	#15 – .180″	Medium	40201	$65.00
M-4FL	16.80	0.664	43/64	#10 – .1925″	Very Deep	40362	$120.00
M-4FLB	16.80	0.664	43/64	#10 – .1925″	Very Deep	40418	$120.00
M-4FLY	16.80	0.664	43/64	#10 – .1925″	Very Deep	40366	$120.00

Guide to Flügelhorn Tapers

The following information is reprinted with permission from www.mouthpieceexpress.com.

Confused about tapers? Don’t feel bad—you’re not alone. Here’s the scoop on flügelhorn mouthpiece tapers. Just remember, if you are using the wrong taper, you may be experiencing poor intonation and response!

LARGE Morse taper

Commonly known as Standard Taper, the LARGE Morse taper is used by Yamaha, Getzen, Callet, Benge/King/Conn, Holton and older Kanstul 1525 flügelhorns.

Note: Only a very limited number of early Model 1525 Signature flügelhorns were built with mouthpipes to accept the large Morse (Yamaha) taper. If you own a Model 1525, more than likely it has a receiver that accepts the small Morse (Bach) taper. The mouthpipe is marked with a letter “B”.
SMALL Morse taper

The so-called “Bach Taper.” Bach, Courtois, newer Couesnon, Kanstul 1525 and some European flügelhorns use the SMALL Morse taper.
FRENCH (straight) taper

Also known as Couesnon Taper, French taper is used by original Couesnons, Flip Oakes “Wild Thing,” Kanstul CCF 925, and original F. Besson flügelhorns.

Visual Mouthpiece Comparator

Access our Mouthpiece Comparator here.

Visual Backbore Comparator

Access our Backbore Comparator here.
